ID # 38947822

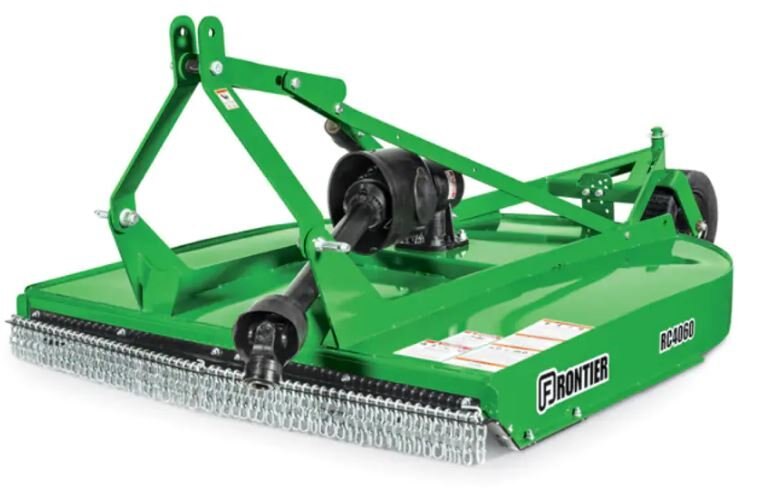

2025 John Deere RC40 Series
Call For Pricing
Call for Price
Overview
Specifications
features
key specs
dimensions
weight
tractor compatibility
gear case
drivelines
hitch
deck
skirt
capacity
blades
blade holder
wheels
safety
set-up time
warranty
additional information
literatures
Documents
|
Model
RC40 Series
Category Name
Attachments
Year
2025
Sale Type
New
Manufacturer
John Deere
Features
|
Key features – RC40 Series With the RC40 series Rotary Cutters, high take-rate options are now included in base equipment. This will reduce ordering complexity and still including highly ordered features, such as the Front and Rear Chain Shields and PTO Slip Clutch without the ordering complexity. |
|

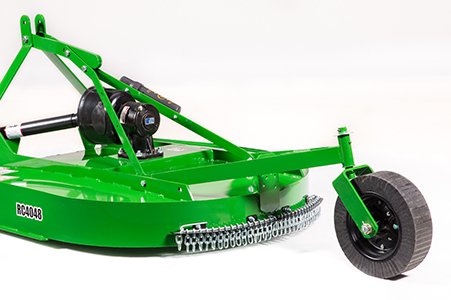

The round-back deck design on the RC40 Series Rotary Cutter enables easy maneuvering into tight corners and around trees, fences, and other hard-to-reach areas. |
|

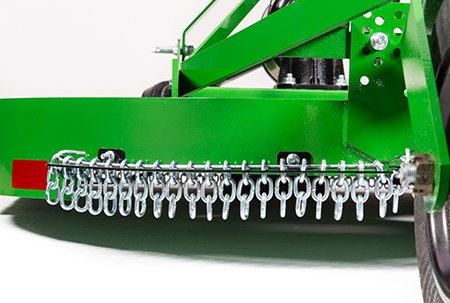

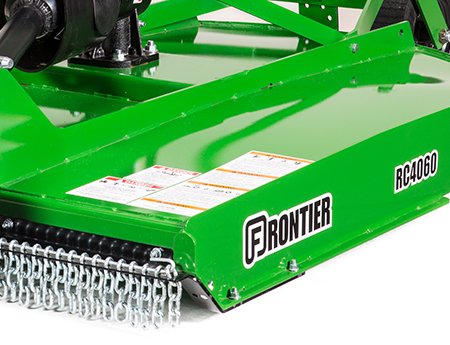

The front and rear deck deflector are made of chain for longer life. |
|

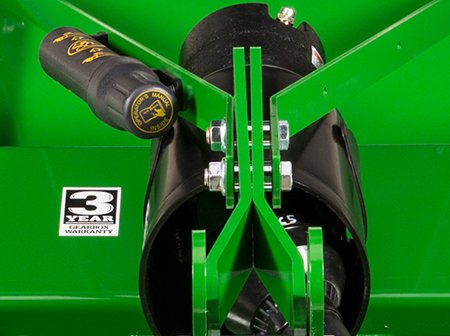

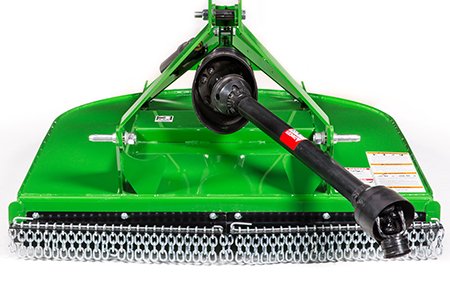

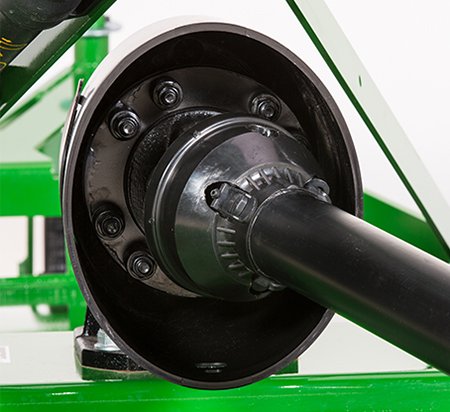

The drive holder that is incorporated into the frame, allows the PTO drive shaft to rest on the frame and not on the shop floor or ground. Providing more comfort and avoiding contamination from dirty floor and ground surfaces. |
|
The RC40 Series cutters also comes with a three year limited gear box warranty, giving customers peace of mind regarding the heart of their rotary cutter. It also offers optional replaceable skid shoes for longer wear life of the cutter side skirts. |
|

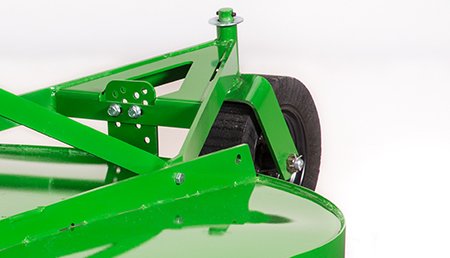

Adjusting the cutting height is easy, simply adjust a tractor's three-point linkage and move the support bar to the desired cutting height. |
|

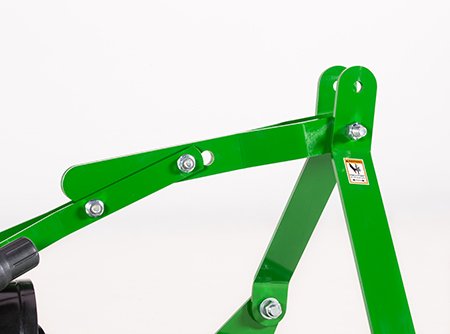

The Mast brackets are connected to a free break link allowing the rotary cutter to follow the ground with the rear wheel, resulting in improved cut quality. |
|

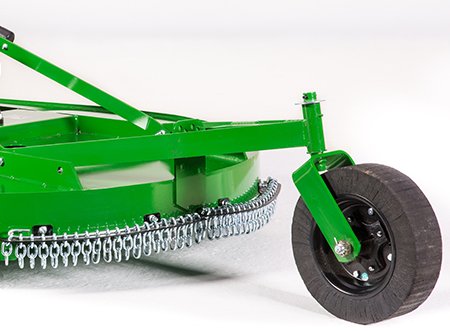

The RC40 Series Rotary Cutter has laminated rear tire, that is puncture resistant. The laminated tire is longer lasting and provides more support when working in sandy or lighter soil conditions. |
|

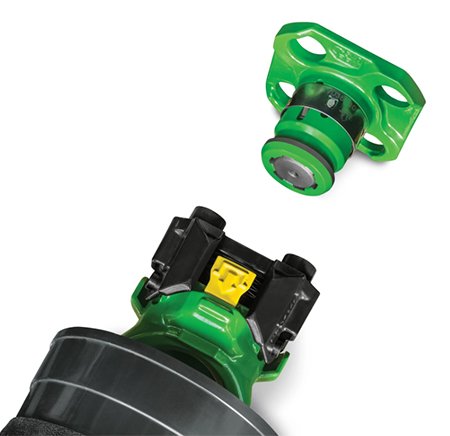

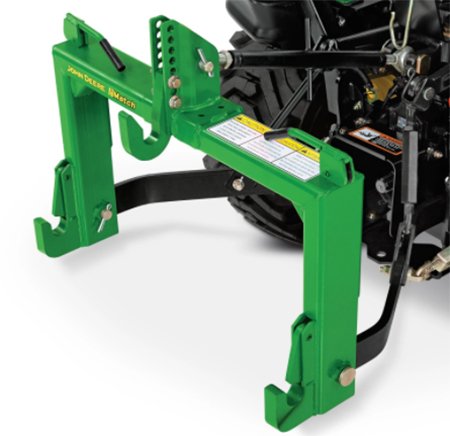

The RC40 Series Frontier™ Rotary Cutters are iMatch ready and compatible with the John Deere Quik-Knect power take-off (PTO) connection system. This makes hooking up the RC40 Series Cutters easy and quick, so you can get working on the job at hand, faster. |
Key Specs
| Cutting width | RC4048: 122 cm 48 in. RC4060: 152 cm 60 in. RC4072: 183 cm 72 in. |
|---|---|
| Cutting height | All : 5.1-23 cm 2-9 in. |
| Overall width | RC4048: 132.8 cm 52.3 in. RC4060: 155.7 cm 61.3 in. RC4072: 186.2 cm 73.3 in. |
| Overall length | RC4048: 229.2 cm 90.3 in. RC4060: 250 cm 98.3 in. RC4072: 281.9 cm 111 in. |
| Deck - Thickness | All : 12 gauge 2.79 mm 0.11 in. |
| Hitch - Category | RC4048: Category 1 RC4060: Category 1 RC4072: Category 1 |
| PTO horsepower | RC4048: 11.2-30 kW 15-40 hp RC4060: 15-41 kW 20-55 hp RC4072: 18.6-41 kW 25-55 hp |
Dimensions
| Overall width | RC4048: 132.8 cm 52.3 in. RC4060: 155.7 cm 61.3 in. RC4072: 186.2 cm 73.3 in. |
|---|---|
| Overall length | RC4048: 229.2 cm 90.3 in. RC4060: 250 cm 98.3 in. RC4072: 281.9 cm 111 in. |
Weight
| Cutting width | 6.1 m 20 ft |
|---|---|
| Cutting height | 25.4-406.4 mm 1-16 in. May vary with suspended tongue |
| Cutting capacity (diameter) | 101.6 mm 4 in. |
| Cutting chamber depth | 254 mm 10 in. |
Tractor Compatibility
| PTO horsepower | RC4048: 11.2-30 kW 15-40 hp RC4060: 15-41 kW 20-55 hp RC4072: 18.6-41 kW 25-55 hp |
|---|---|
| Tractor PTO | All : 540 rpm |
| PTO category | All : ASAE 3 |
Gear Case
| Horsepower | RC4048: 30 kW 40 hp RC4060: 41 kW 55 hp RC4072: 41 kW 55 hp |
|---|
Drivelines
| Size | Main CV ASAE Category 6, splined telescoping profiles Connecting ASAE Category 5, splined telescoping profiles |
|---|---|
| Protection | Connecting No-seize, slip-clutch driveline |
Hitch
| Type | All : Lift-type |
|---|---|
| Category | All : Category 1 |
| iMatch™ compatible | All : Yes |
Deck
| Number | Four |
|---|---|
| HP rating | Transfer Continuous: 186 kW 250 hp Peak : 224 kW 300 hp Center Continuous: 93 kW 125 hp Peak: 168 kW 225 hp Outer Continuous: 93 kW 125 hp Peak: 168 kW 225 hp |
Skirt
| Thickness | 13 mm 0.5 in. |
|---|---|
| Width | 102 mm 4 in. |
| Type | Suction |
| Overlap | 152 mm 6 in. |
| Blade tip speed | 540 rpm 81.7 m/s 268.1 fps 1000 rpm 83 m/s 272.4 fps |
| Blade holder | Type Round stump jumper and standard deck rings for maximum protection of blades and blade carrier against obstruction damage |
Capacity
| Wing lift | Independent; includes spring assist unfolding |
|---|---|
| Wing flex | For transport: upward 90 degree (angle) Upward working angle: 45 degree (angle) Downward working angle: 22 degree (angle) |
Blades
| Type | Option 1 5-bolt, laminated: 21x5.25x9 Option 2 5-bolt, 24PR severe-duty ag: 26x9x14.5 5-bolt, 24PR severe-duty ag foam filled: 26x9x14.5 |
|---|---|
| Suspension | Torsional suspension |
| Row width adjustment | Yes |
| Wing-leveling adjustment | Easy adjust turnbuckle with bearing |
Blade Holder
| Front | Single-row chain guard Optional: double row |
|---|---|
| Rear | Single-row chain guard Optional: double row |
Wheels
| Gearboxes | 5 years |
|---|
Safety
| Markings | All : Standard |
|---|---|
| Front deflector | All : Standard - Front Chain Shield |
| Rear deflector | All : Standard - Rear Chain Shield |
Set-up Time
| Labor hours | All : 1 |
|---|
Warranty
| Time period | All : 1 year |
|---|---|
| Gearbox | All : 3 year |
Additional Information
| Date collected | All : 4 November 2021 |
|---|
Literatures
| Name | Link |
| View Product Brochure | Download |
