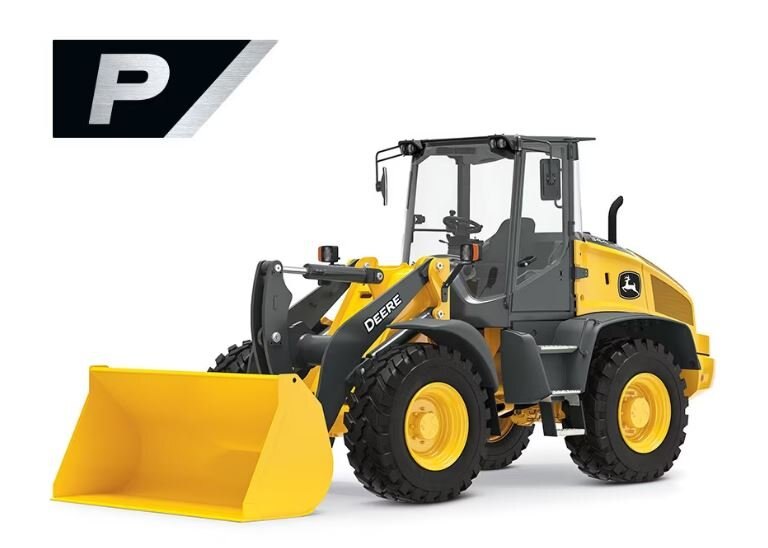

2025 John Deere 344 P-Tier

Articulation Plus™ Steering provides a tighter turning radius and increased stability

P-tier compact wheel loaders continue to feature industry exclusive Articulation Plus™ that adds rear wheel steering to increase full turn tipping load and improve maneuverability

• This steering system combines 30 degrees of standard articulation with an additional 10 degrees of rear-wheel steering.
• Articulation Plus™ enables a significantly higher full turn tipping load than machines without this feature because the machine does not need to articulate as much to turn
• This feature results in a significantly tighter turning radius than comparatively sized loaders without Articulation Plus™

Enjoy all day comfort with the spacious and ergonomically friendly cab

The operator focused designs found within John Deere Compact Wheel loaders ensure operators are comfortable and productive all day.

• P-tier loaders bring over the significant cab upgrades seen in L-series wheel loaders that featured an overall larger cab that is both wider and longer compared to previous series
• To help keep operators more comfortable during a long shift, the air conditioning system contains an array of adjustable louvers. The optimized duct work coupled with these louvers provide increased airflow and allow the operator to direct airflow where it is needed.
• Ergonomic, low effort controls all on the right side, allow operators to work comfortably and more efficiently
• Machine display is mounted to the cab A-frame and is height adjustable
• Ample storage within the cab allows operators to keep personal items close and secure
• Adjustable steering column allows operators to easily move the steering wheel to a desired position to help increase productivity and allow easy ingress and egress.
• Optional premium high-back, air suspension heated seat provides top of the line comfort for operators in off road conditions and colder climates
• The left pedal acts as a brake and inching pedal. If the operator pushes all the way down, the machine comes to a complete stop. If the operator presses the pedal without going all the way down, the machine will proportionally move slower and continue at that speed

Productivity enhancements that can benefit you regardless of the machine’s application

The 344 P-tier comes with features that result in higher productivity in applications like V-pattern truck loading, bale handling, and landscaping.

• The John Deere™ 4045T engine features a high-pressure common rail fuel system with electronic injectors, four-valve cylinder head, a wastegate turbocharger, and is charge air cooled. The 344 P-tier meets Final Tier 4 emissions regulations through the use of cooled exhaust gas recirculation (EGR), a diesel oxidation catalyst (DOC), diesel particulate filter, and selective catalytic reduction (SCR) system. The selective catalytic reduction (SCR) system utilizes diesel exhaust fluid (DEF) to reduce nitrogen oxide (NOx) emissions.
• Based off of customer and dealer feedback, the 344 P-tier  has a maximum travel speed of 40 km/h (25 mph)
• Automatic shift logic has been internally developed specifically for this machine to allow the operator to focus on their work instead of shifting gears. This allows the machine to seamlessly transition from loading to transport. The system senses the machine speed and load and will adjust the hydrostatic pumps, motors, and gearbox automatically without operator input to best match the conditions.
• Manual low-speed 100-percent differential lock delivers the ground gripping tractive effort necessary to dive deep into the pile and help heap the bucket.
• Standard ride control reduces material spillage from the bucket when traveling over rough and uneven terrain by cushioning the boom. This will help in getting the material being moved to where it is intended to go, and will reduce site cleanup that may result from spilled material.
• To help keep material in the bucket, and to make an operator more comfortable, there are two points of oscillation on the 344 P-tier when traveling over rough ground. The articulation joint has 10 degrees of oscillation and the rear axle also has 10 degrees of oscillation. Combined, both help to significantly improve machine stability over rough and uneven terrain.
• High lift linkage option on the 344 P-tier adds additional height to hinge pin to increase things like dump height and reach

Ease of serviceability allows you to spend more time completing the tasks at hand

Enhanced serviceability features and ease of access to daily and preventative maintenance points ensures that these tasks do not significantly cut into working hours

• Ground level service simplifies daily maintenance, keeping machine in good working condition without cutting into working hours.  This also enables operators to change fluids quickly and cleanly to keep equipment running smoothly
• Cooling package optimizes efficiency and cleanout. The unique diagonal flow through design is efficient because it minimizes contamination from debris build up. This significantly reduces material buildup on the coolers. The coolers are also spaced to allow ease of access for cleanout from ground level.
• To maximize time spent on the job instead of in the shop, compact wheel loaders feature extended service intervals for engine oil and filter, final drive oil, and hydraulic oil.
• Compact wheel loaders are supported by one of the largest dealer networks in the industry meaning more technicians in the shop and field and more parts on the shelf to keep machines up and running.
• The automatic spring-applied hydraulically released park brakes help maximize uptime and are a safer and more reliable feature than most competitor’s cable operated park brakes.

Excellent visibility for increased situational and jobsite awareness

Compact Wheel Loaders are built with operator visibility in mind. From the increased amount of glass in the cab, tapered boom, to the rear sloping hood and everything in between, operators will have increased visibility to all sides of the machine.

• New cab design features a frameless, fully glass door and floor to ceiling front windshield that provides clear line of sight to the front tires, attachments, and machine surroundings The right-side window, also full glass, swings out 180 degrees to further enhance overall visibility
• Single boom and bucket cylinder in line with each other helps ensure the operator is able to efficiently change out between attachments
• Tapered boom design has been optimized for improved parallel lifting capabilities especially when forks are being used in applications like landscaping. The design also provides excellent viewing of attachments and material.
• Sloped rear hood and rear-view mirrors allow superb views to the rear of the machine when backing up
• Optional light-emitting diode (LED) lighting package that offers two different styles of LED lights, results in increased productivity in low light conditions due to significantly better illumination of the machine surroundings compared to standard halogen bulbs. It will also result in a more durable and reliable light source over time when compared to standard halogen bulbs
